| Kód produktu | BI/008 |
|---|---|
| Dostupnosť | Skladom |
| Výrobca | ROGER Brushless |
| Barriers: | Up to 8 mt long |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V DC |
| Electrical absorption: | max 18A |
| Power rating: | 300W |
| Frequency of use: | Super intensive use |
| Torque: | 10 - 400 N m |
| Operating temperature: | - 20 + 55 °C |
| Protection level: | IP54 |
| Reductor Type: | Irreversible |
| Opening time: | 9 ÷ 29 (sec) |
| Onboard control unit: | CTRL Digital Controller 36V DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Accessories power supply: | 24V DC |
| Colour: | Cabinet: painted RAL9006 arabesque grey - Head: čierna arabeska strieborná painted - Boom support: čierna arabeska strieborná painted - Boom: painted RAL9010 matt |
| Release system: | European Key cylinder |
| Batteries recovery: | Available (optional) |
| BUS synchronization Master/Slave: | Yes |
| Operačné cykly za deň (opening/closing - 24 hours no stop): | 2500 cyklov |

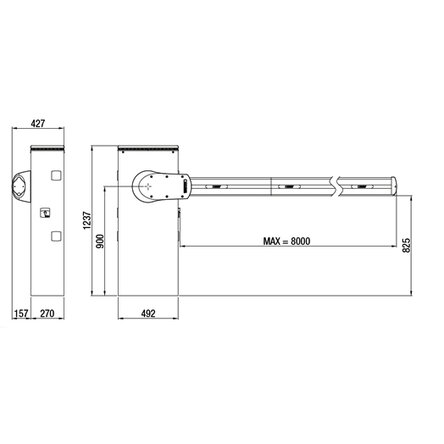

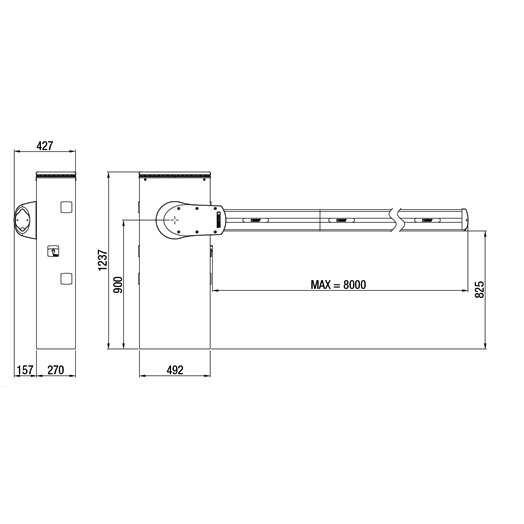

| Maximum rozmeru výrobku v mm (L x W x H): | 500 x 270 x 1237 |
| Product weight packed (Kg): | 104,7 |
| Number items per pallet: | 4 |
